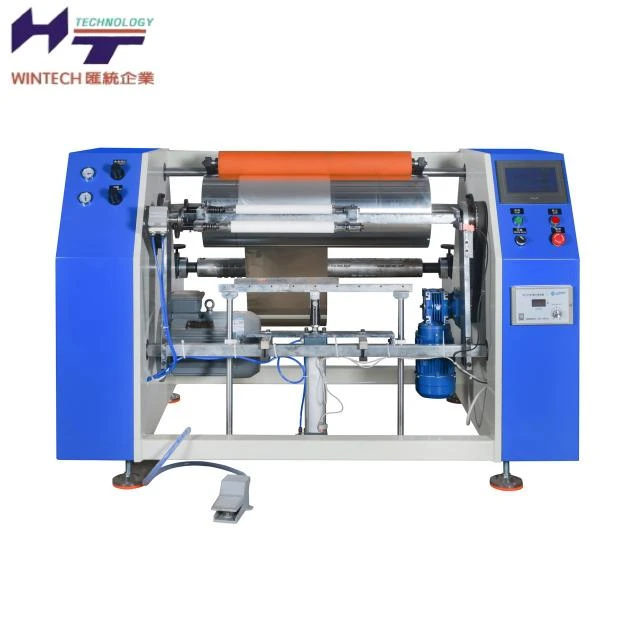

Product Introduction
With highly efficient production capacity: Our company's semi-automatic aluminum foil rewinding machine is designed to produce up to 300 meters per minute, making it an ideal choice for printing shops, hotels, clothing stores, food and beverage factories, restaurants, food stores and other places.
Durable and sturdy structure: This model adopts a robust design, with dimensions of 1800*1550*1050/mm and a weight of 590 kilograms. It offers a long-lasting performance guarantee, ensuring the applicability of the product. The semi-automatic aluminum foil rewinding machine is suitable for various industries and places. It is widely used in hotels, garment factories, food and beverage factories, various restaurants, food stores, printing stores and supermarkets.
Global availability: We have customers in Egypt, Canada, Turkey, the United Kingdom, Italy, the Philippines, Peru, Saudi Arabia, Pakistan, Spain, Kenya, Chile, Romania, as well as in Kazakhstan, Malaysia, Australia, Mexico and other countries and regions.
Product Parameter (Specification)
|
Model |
HTS-F600 |
|
Width Of Mother Roll |
Max600mm |
|
Width Of Finish Roll |
Max600mm |
|
Speed |
Max300m/min |
|
Mother Roll Diameter |
Max600mm |
|
Finish Roll Diameter |
Max100mm |
|
Core Of Mother Roll |
3〞 |
|
Core Of Finish Roll |
Inner diameter: 30 - 40mm (thickness greater than or equal to 2mm) |
|
Dimension |
1800*1550*1050/mm |
|
Net weight |
590KG |
Product Feature and Application
Features
Easy to operate, with PLC and HMI plus inverter control system.
The smooth and flat finished products appearance can be guaranteed with airshaft and magnetic powder tension control system.
High degree of automation can be achieved with automatic cutting and flip.
Detailed introduction of Features
Smart Brain
PLC + human-machine interface + frequency converter intelligent control system
Intelligent central control unit: With high-performance PLC as the control core, it features meticulous logic, stable and reliable operation, ensuring that the equipment can work continuously for a long time without errors.
Humanized interaction experience
Equipped with a high-resolution human-machine interface (HMI) touch screen, the menu is clear and the parameter Settings are immediately understandable. Multiple slitting schemes can be preset, stored and called up. Different specifications of products can be switched with one click, greatly simplifying the operation and reducing the reliance on skilled workers.
Smooth power drive
The frequency converter controls the main motor to achieve stepless precise speed regulation. It starts and stops gently, runs smoothly, effectively avoiding the stretching and cracking of thin and brittle aluminum foil caused by sudden speed changes, and perfectly meets the different needs from low-speed fine adjustment to high-speed production.
Precision Heart
Air expansion shaft + magnetic powder tension control system
Constant tension, smooth curling: The core adopts a magnetic powder tension control system, achieving closed-loop fully automatic tension control throughout the entire process of unwinding, slitting and rewinding. The tension value can be precisely set and kept constant. From the core to the outside of the roll, the tension remains consistent, fundamentally eliminating defects such as ripples, wrinkles, and tensile deformation, ensuring that the end face of the finished roll is as neat as a mirror and the roll body is tight and uniform.
Efficient and non-destructive clamping
Both the unwinding and rewinding are equipped with air expansion shaft devices. After inflation and expansion, the core of the coil can be firmly locked. When unloading, it can be easily removed by releasing air. Quick clamping, avoiding the damage to the core caused by traditional methods, ensuring uniform torque transmission without sliding friction, and protecting the smoothness of the foil surface.
Automated Limbs
Automatic cutting + automatic flipping (dual stations)
One-click automatic roll cutting: Once the preset length is reached, the system automatically issues instructions to complete a series of actions such as precise cutting, synchronous downward pressing of the pressure arm, and automatic foil drawing for new rolls. The entire process requires no human intervention, featuring high efficiency, uniform cuts and no waste.
Prodect Qualification
Established in 1998, Suzhou industrial Park Wintech CO.. LTD. is a high technology enterprise specializing in manufacturing plasticoackaging products and machinery,integrating design, research and development, production and sales as well as after-sales service
The company is headquatered in Suzhou industrial Park with convenient transportation, beautiful scenery and favorable policies. The mairproduction of plastic packaging products (printing products,PE bag. tape).Nantong Wintech Plastic Machinery Co..Ltd. is located in HaimenNantong, mainly produces (rewinding &sliting machine,stretch flm, cling flm,freezer bag. trash bag). We are the first supplier to produce thisKind of machine in China, the branch covers an area of 13,000 square meters, registered assets of 30 miion. We have highly responsible andprofessional engineers, sales staff and after-sales technical personnel. Our branch has expanded 5000 square meters of dust-free factory.
In addition, our products obtained CE certificate and several patents. Seling wel in all cities and provinces around China, our products are alsoexported to clients in such countries and regions as Southeast Asia, lndonesia, the Middle East, Colombia, Russia by our branch.
Company technology and research and development strenath, talent structure is reasonable, has more than 200 staff and technical backbonenow has a number of capable management personnel and a quality professional technical team after we coninue to improve qualty, elegantstyle and good collocaion effect is obtained with the demand of the market abroad, Won the favor of a large number of foreign importers andapproval.
Nantong Huitong Plastic Machinery Co., Ltd. specializes in various packaging machinery, packaging material processing machinery, etc.
- Our working philosophy: Simplify complex matters, detail simple matters, specialize detailed work, and concretize professional work
- Our management philosophy: Appropriate goals, specific plans, resolute execution, and happy sharing
- Our service philosophy: Making products is about quality and service. The successful application of products is the criterion for measuring all our work
The enterprise policy is "Honesty and Transcendence".
Through continuous efforts, we have become experts in the research and production of stretch film machines, cling film machines, aluminum foil machines, paper roll slitting and rewinding machines, and various custom packaging material processing machinery.
We are located in the Shanghai economic circle. It takes about 30 minutes to get here from Shanghai Hongqiao Airport by high-speed rail. It's very convenient to visit our factory.
Welcome to visit our factory!
Deliver, Shipping and Serving
The qualifications and professionalism of our company are beyond doubt. Customers bring us their needs, and our responsibility is to meet their demands. My actions are corporate image + product image + brand image.
Reliable after-sales maintenance guarantee: The machine comes with a one-year warranty, providing customers with reassuring after-sales service. Core components are guaranteed for one year, ensuring customers have the least downtime and maximum productivity.
FAQ
